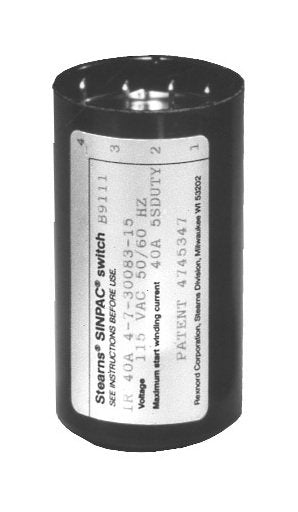

SINPAC IR Series Instant Reverse Switch
SINPAC IR Series Instant Reverse Switch
SKU:MOT-ac08eb
Enhance motor efficiency with the SINPAC IR Series Instant Reverse Switch. UL recognized, CSA certified for reliable performance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SINPAC IR Series Instant Reverse Switch
$129.99
Quantity: 1
Claim Your Seller Account
SINPAC IR Series Instant Reverse Switch
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SINPAC IR Series Instant Reverse Switch is a crucial component for bidirectional motors, swiftly changing the motor's direction without any delay. This solid-state switch is UL recognized, CSA certified, and operates silently with no arcing contact. With a typical maximum motor HP of 0.5 and switch rating up to 25A, this switch ensures smooth and reliable motor operations. Operating between -40°C to 65°C, it offers unparalleled performance and durability, making it an ideal choice for institutions requiring highly efficient motor control solutions.
Product Specifications
Additional Features Additional Features
UL recognition and CSA certification. Completely solid-state with no moving parts. SINPAC Switches have no physical constraints to affect their operation. No wearing parts mean high cycling, no arcing contact. Low warranty Silent operation - no switch noise Operating Temperature: -40°C to 65 °C (-40 °F to 149°F) [for operation between 65°C and 85°C (149°F and 185°F), consult factory.] Operating Voltage: 115 Vac SINPAC Switch: 90-130 Vac. For dual voltage motor equipped with center-tapped main winding: 90-130 Vac or 180-265 Vac.
Specifications Cut In Voltage
30 V
Specifications Cut Out Voltage
130 V
Specifications Kit Part Number
4-7-51025-15-UA1
Specifications List Price
0.0 USD
Specifications Manufacturer
Stearns® SINPAC®
Specifications Package Style
15
Specifications Start Winding Voltage
115 V
Specifications Switch Rating And Permissible Maximum Start Windi
25 A
Specifications Full Load Motor Nameplate Current Rating
6 A
Specifications Maximum Motor Hp
0.5
