SINPAC IR Series Instant Reversing Switch for Motors
SINPAC IR Series Instant Reversing Switch for Motors
SKU:MOT-bba753
Transform your motor into an instant reversing powerhouse with the SINPAC IR Series Switch!
Regular price
$173.33
Regular price
Sale price
$173.33
Unit price
per
Initiate Order
SINPAC IR Series Instant Reversing Switch for Motors
$173.33
Quantity: 1
Claim Your Seller Account
SINPAC IR Series Instant Reversing Switch for Motors
$173.33
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

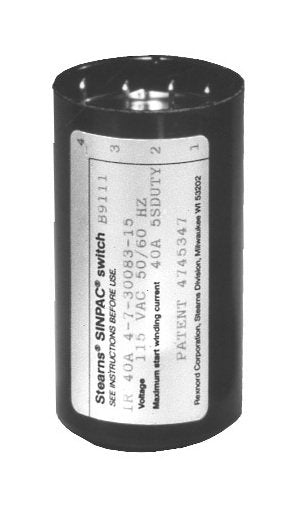

The SINPAC IR Series Instant Reversing Switch transforms a reversible capacitor start motor into an instant reversing motor with no time delay required. Ideal for bidirectional motors, this switch detects changes in winding phase shifts to effortlessly change motor direction. With UL recognition and CSA certification, it offers solid-state reliability with no moving parts, ensuring high cycling performance and silent operation. Operating at temperatures from -40°C to 65°C (-40°F to 149°F), it provides seamless operation and durability. Make your motors instantly reversible with this innovative switch.
Product Specifications
Additional Features Additional Features
UL recognition and CSA certification. Completely solid-state with no moving parts. SINPAC Switches have no physical constraints to affect their operation. No wearing parts mean high cycling, no arcing contact. Low warranty Silent operation - no switch noise Operating Temperature: -40°C to 65 °C (-40 °F to 149°F) [for operation between 65°C and 85°C (149°F and 185°F), consult factory.] Operating Voltage: 115 Vac SINPAC Switch: 90-130 Vac. For dual voltage motor equipped with center-tapped main winding: 90-130 Vac or 180-265 Vac.
Specifications Cut In Voltage
30 V
Specifications Cut Out Voltage
130 V
Specifications Kit Part Number
4-7-51040-15-UA1
Specifications List Price
173.33 USD
Specifications Manufacturer
Stearns® SINPAC®
Specifications Package Style
15
Specifications Start Winding Voltage
115 V
Specifications Switch Rating And Permissible Maximum Start Windi
40 A
Specifications Full Load Motor Nameplate Current Rating
10 A
Specifications Maximum Motor Hp
2
