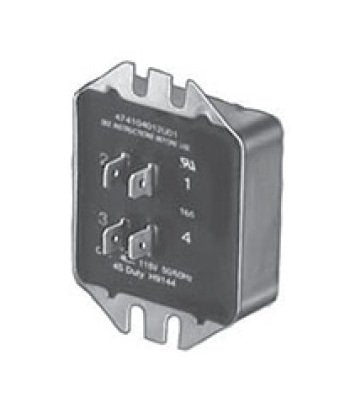

SINPAC VR-50-165 Solid State Switch for Dual Voltage Motors
SINPAC VR-50-165 Solid State Switch for Dual Voltage Motors
SKU:MOT-6ae0b2
Enhance motor efficiency with the SINPAC VR-50-165 Solid State Switch for dual voltage motors. UL recognized, environmentally protected, and maintenance-free.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
SINPAC VR-50-165 Solid State Switch for Dual Voltage Motors
$99.99
Quantity: 1
Claim Your Seller Account
SINPAC VR-50-165 Solid State Switch for Dual Voltage Motors
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your motor control with the SINPAC VR-50-165 Solid State Switch. Ideal for 115 or 115/230 VAC dual voltage capacitor start/capacitor run motors, this switch enhances efficiency and durability. With a robust design that eliminates electrical stresses and silent operation, enjoy reliable performance in any environment. UL recognized and environmentally protected, this switch offers high cycling capabilities with no arcing contact for low maintenance and peace of mind.
Product Specifications
Additional Features 0

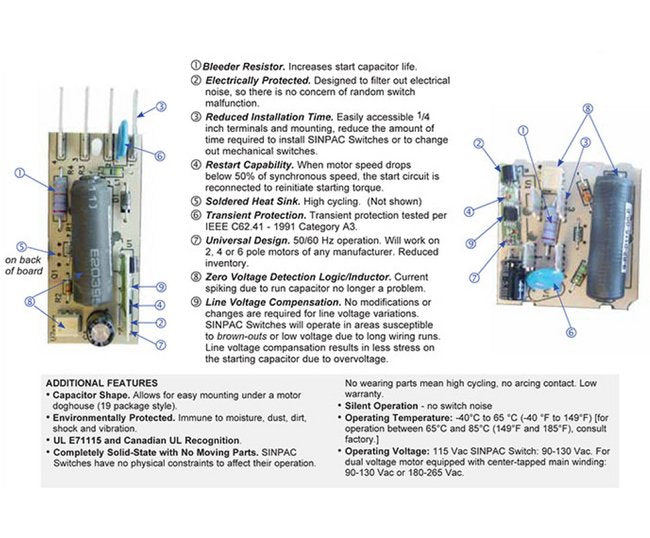

Capacitor Shape: Allows for easy mounting under a motor doghouse (19 package style). Environmentally Protected: Immune to moisture, dust, dirt, shock and vibration. UL E71115 and Canadian UL Recognition. Completely Solid-State with No Moving Parts: SINPAC® Switches have no physical constraints to affect their operation. No wearing parts mean high cycling, no arcing contact, Low warranty. Silent Operation: No switch noise. Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF). consult factory] Operating Voltage: 115 VAC SINPAC® Switch 90-130 VAC. For dual voltage motor equipped with center-tapped mam winding: 90-130 VAC or 180-265 VAC.
Specifications List Price
0.0 USD
Specifications Package Style
12 | 19
Specifications Part Number
4-7-71016-12-U01 | 4-7-71016-19-U01
Specifications Start Circuit Voltage
115 V
Specifications Switch Rating Permissible Max Start Capacitor Cur
16 A
Specifications Cut In Voltage
37 V
Specifications Cut Out Voltage
165 V
Specifications Full Load Motor Current Rating 115230 Vol
8/4 A
Specifications Full Load Motor Current Rating 115 Volts
8 A
Specifications Maximum Motor
1/2 hp
