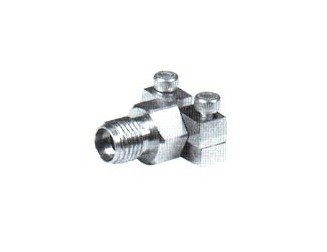

SK 2.9MM Precision Edge Mount PCB Connectors

Name: SK 2.9MM Precision Edge Mount PCB Connectors
Brand: C. W. Swift & Associates, Inc.
SKU: SK2-7793d7
Price: 29.99 USD
Availability: OutOfStock

SKU:SK2-7793d7

SK 2.9MM precision PCB connectors for high-frequency applications, impedance 50 Ohms, frequency up to 40GHz, beryllium-copper construction.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SK 2.9MM precision edge mount PCB connectors are expertly designed for optimal performance in high-frequency applications. With an impedance of 50 Ohms and a frequency range of DC to 40GHz, these connectors ensure reliable signal transmission. They feature a dielectric withstanding voltage of 750V rms, insulation resistance exceeding 5000M Ohms, and a durable beryllium-copper construction. Meeting stringent standards for durability and performance, these connectors offer a temperature range of -67 to 257 degrees F, making them ideal for a wide range of industrial applications.

Product Specifications

Specifications Body Material

beryllium-copper hardened

Specifications Centre Contacts

beryllium-copper hardened

Specifications Centre Contact Resistance M Ohms

Specifications Configuration

PCB edge mount

Specifications Connection

female

Specifications Connector Series

Specifications Contact Captivation Lbs

>4.9

Specifications Dielectic Withstanding Voltage Sea Level V Rms

750

Specifications Durability Matings

>500

Specifications Frequency Ghz

DC...40

Specifications Impedance Ohms

Specifications Insulation Resistance M Ohms

>5000

Specifications Outside Contact Resistance M Ohms

Specifications Packaging

single

Specifications Support Beads

PPO

Specifications Temperature Range Degrees F

-67 to 257

Specifications Working Voltage Sea Level V Rms

<250
