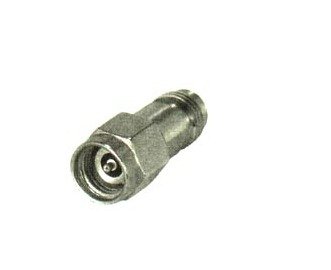

SK Precision Adaptors Plug to Jack

Name: SK Precision Adaptors Plug to Jack
Brand: C. W. Swift & Associates, Inc.
SKU: SK2-fb89dc
Price: 29.99 USD
Availability: OutOfStock

SKU:SK2-fb89dc

High-quality SK Precision Adaptors with 50 Ohms impedance, DC-40 GHz frequency range & beryllium-copper construction for durability.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SK Precision Adaptors Plug to Jack are high-quality within-series connectors designed for precision applications. With an impedance of 50 Ohms and a frequency range from DC to 40 GHz, these adaptors ensure reliable signal transmission. Built with beryllium-copper hardened materials for durability, they offer exceptional performance with low contact resistance. Rated for 500+ matings and meeting stringent industry standards, these connectors are ideal for demanding environments. From their wide temperature range of -67 to 257 degrees F to their VSWR of less than 1.20, these adaptors deliver superior connectivity for critical systems.

Product Specifications

Specifications Body Material

beryllium-copper hardened

Specifications Centre Contacts

beryllium-copper hardened

Specifications Centre Contact Resistance M Ohms

Specifications Configuration

straight

Specifications Connection

male-female

Specifications Connector Series

Specifications Contact Captivation Lbs

>4.9

Specifications Dielectic Withstanding Voltage Sea Level V Rms

750

Specifications Durability Matings

>500

Specifications Frequency Ghz

DC...40

Specifications Impedance Ohms

Specifications Insulation Resistance M Ohms

>5000

Specifications Outside Contact Resistance M Ohms

Specifications Packaging

single

Specifications Support Beads

PPO

Specifications Temperature Range Degrees F

-67 to 257

Specifications Vswr Dc 40 Ghz F

<1.20

Specifications Working Voltage Sea Level V Rms

<250
