SK Precision Jack-Jack Adaptor

Name: SK Precision Jack-Jack Adaptor
Brand: C. W. Swift & Associates, Inc.
SKU: SK2-e88320
Price: 29.99 USD
Availability: OutOfStock

SKU:SK2-e88320

High-quality SK Precision Jack-Jack Adaptor for reliable signal transmission in precision applications. Impedance: 50 Ohms, Frequency: DC-40 GHz.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

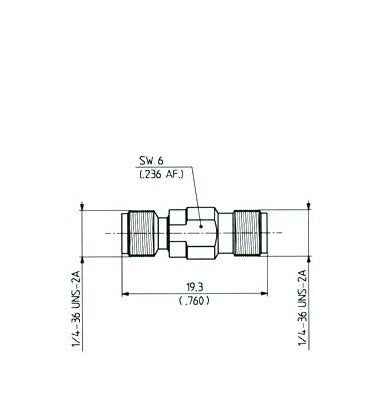

The SK Precision Jack-Jack Adaptor is a high-quality within-series connector designed for precision applications. With an impedance of 50 Ohms and a frequency range from DC to 40 GHz, this adaptor ensures reliable signal transmission. Crafted from beryllium-copper hardened material, it offers exceptional durability and performance. Meeting stringent standards for impedance, contact resistance, and temperature tolerance (-67 to 257°F), this adaptor is ideal for demanding environments. It comes in a straight configuration, supporting over 500 matings and featuring VSWR of less than 1.20 across the frequency range.

Product Specifications

Specifications Body Material

beryllium-copper hardened

Specifications Centre Contacts

beryllium-copper hardened

Specifications Centre Contact Resistance M Ohms

Specifications Configuration

straight

Specifications Connection

female-female

Specifications Connector Series

Specifications Contact Captivation Lbs

>4.9

Specifications Dielectic Withstanding Voltage Sea Level V Rms

750

Specifications Durability Matings

>500

Specifications Frequency Ghz

DC...40

Specifications Impedance Ohms

Specifications Insulation Resistance M Ohms

>5000

Specifications Outside Contact Resistance M Ohms

Specifications Packaging

single

Specifications Support Beads

PPO

Specifications Temperature Range Degrees F

-67 to 257

Specifications Vswr Dc 40 Ghz F

<1.20

Specifications Working Voltage Sea Level V Rms

<250
