SK Precision Straight Adaptors (Jack-to-Jack)

Name: SK Precision Straight Adaptors (Jack-to-Jack)
Brand: C. W. Swift & Associates, Inc.
SKU: SK2-c3b0a7
Price: 39.99 USD
Availability: OutOfStock

SKU:SK2-c3b0a7

Enhance connectivity with SK Precision Straight Adaptors, optimized for 50 Ohms impedance, DC to 40 GHz frequency range, and extreme durability.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

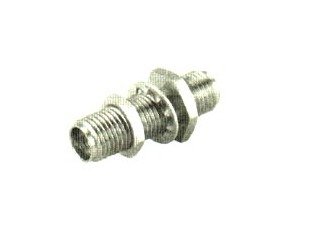

The SK Precision Straight Adaptors are expertly designed for seamless connectivity within-series, offering exceptional impedance control (50 Ohms), extensive frequency support from DC to 40 GHz, and robust durability with over 500 matings. Crafted with beryllium-copper hardened materials and PPO support beads, these adapters ensure outstanding performance in extreme temperatures (-67 to 257 degrees F). Each adaptor boasts exceptional electrical properties including low contact resistances and high insulation resistance (>5000 M ohms), meeting the highest industry standards for quality and reliability.

Product Specifications

Specifications Body Material

beryllium-copper hardened

Specifications Centre Contacts

beryllium-copper hardened

Specifications Centre Contact Resistance M Ohms

Specifications Configuration

straight

Specifications Connection

female-female

Specifications Connector Series

Specifications Contact Captivation Lbs

>4.9

Specifications Dielectic Withstanding Voltage Sea Level V Rms

750

Specifications Durability Matings

>500

Specifications Frequency Ghz

DC...40

Specifications Impedance Ohms

Specifications Insulation Resistance M Ohms

>5000

Specifications Mounting Hole

ML 35

Specifications Outside Contact Resistance M Ohms

Specifications Packaging

single

Specifications Support Beads

PPO

Specifications Temperature Range Degrees F

-67 to 257

Specifications Vswr Dc 40 Ghz F

<1.02

Specifications Working Voltage Sea Level V Rms

<250
