SK Precision Subminiature Panel Launchers (Female)

Name: SK Precision Subminiature Panel Launchers (Female)
Brand: C. W. Swift & Associates, Inc.
SKU: SK2-70340a
Price: 32.99 USD
Availability: OutOfStock

SKU:SK2-70340a

SK Precision Subminiature Panel Launchers - High-performance female connectors built for durability and reliability in demanding applications.

$32.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

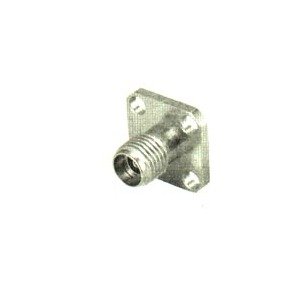

Upgrade your connectivity with SK Precision Subminiature Panel Launchers. This female jack connector, part of the HUBER+SUHNER Series PC 3.5, ensures high-performance with an impedance of 50 Ohms and frequency handling up to 40GHz. Built for durability with a beryllium-copper hardened body and center contacts, these launchers offer reliability with over 500 matings. With compliance to industry standards and a wide temperature range from -67 to 257 degrees F, these connectors are ideal for demanding applications where precision and quality matter.

Product Specifications

Specifications Body Material

beryllium-copper hardened

Specifications Centre Contacts

beryllium-copper hardened

Specifications Centre Contact Resistance M Ohms

Specifications Configuration

panel

Specifications Connection

female

Specifications Connector Series

Specifications Contact Captivation Lbs

>4.9

Specifications Dielectic Withstanding Voltage Sea Level V Rms

750

Specifications Durability Matings

>500

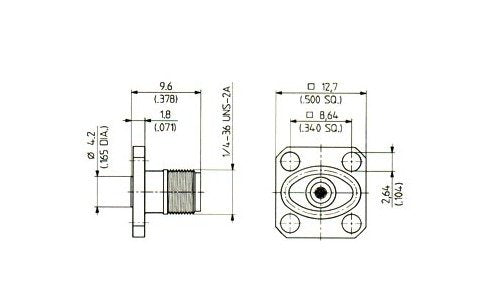

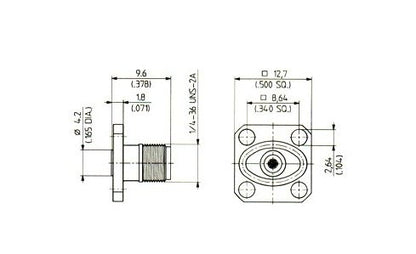

Specifications Flange Type

square

Specifications Frequency Ghz

DC...40

Specifications Impedance Ohms

Specifications Insulation Resistance M Ohms

>5000

Specifications Outside Contact Resistance M Ohms

Specifications Packaging

single

Specifications Support Beads

PPO

Specifications Temperature Range Degrees F

-67 to 257

Specifications Working Voltage Sea Level V Rms

<250
