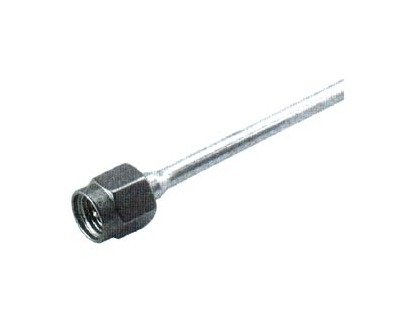

SK Precision Subminiature Straight Cable Connector (Jack)
SK Precision Subminiature Straight Cable Connector (Jack)
SKU:SK2-52c3df
High-performance SK Precision Subminiature Straight Cable Connector for reliable signal transmission. Impedance: 50 Ohms, Frequency: DC-40GHz, Durability: 500+ matings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SK Precision Subminiature Straight Cable Connector (Jack)
$29.99
Quantity: 1
Claim Your Seller Account
SK Precision Subminiature Straight Cable Connector (Jack)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series SK Precision Subminiature Straight Cable Connector is designed for high-performance applications requiring precise signal transmission. With an impedance of 50 Ohms and a frequency range from DC to 40GHz, this connector ensures reliable connections. Featuring beryllium-copper hardened construction, it offers exceptional durability with over 500 matings. The connector's insulation properties meet industry standards, including a dielectric withstanding voltage of 750V rms. Its superior performance in temperature extremes (-67 to 257°F) makes it ideal for demanding environments.
Product Specifications
Specifications Body Material
beryllium-copper hardened
Specifications Cable Group
Y10
Specifications Cable Type
semi-rigid
Specifications Centre Contacts
beryllium-copper hardened
Specifications Centre Contact Resistance M Ohms
<3
Specifications Configuration
straight
Specifications Connection
female
Specifications Connector Series
SK
Specifications Contact Captivation Lbs
>4.9
Specifications Dielectic Withstanding Voltage Sea Level V Rms
750
Specifications Durability Matings
>500
Specifications Frequency Ghz
DC...40
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>5000
Specifications Outside Contact Resistance M Ohms
<2
Specifications Packaging
single
Specifications Support Beads
PPO
Specifications Temperature Range Degrees F
-67 to 257
Specifications Working Voltage Sea Level V Rms
<250
