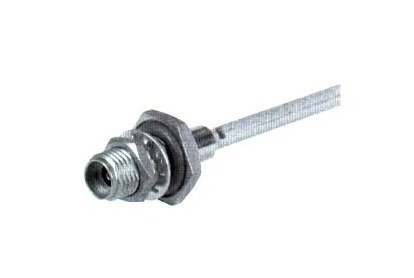

SK Precision Subminiature Straight Cable Connectors

Name: SK Precision Subminiature Straight Cable Connectors
Brand: C. W. Swift & Associates, Inc.
SKU: SK2-fcbe99
Price: 29.99 USD
Availability: OutOfStock

SKU:SK2-fcbe99

Series SK Precision Subminiature Straight Cable Connectors - superior performance and durability for high-frequency applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series SK Precision Subminiature Straight Cable Connectors offer exceptional performance and reliability. With an impedance of 50 Ohms and a frequency range of DC to 40 GHz, these connectors ensure seamless signal transmission. Crafted from beryllium-copper hardened material, they boast superior durability, withstanding temperatures from -67 to 257 degrees F. Featuring insulation resistance of over 5000 M ohms and contact resistance below 3 m ohms, these connectors guarantee unmatched quality and longevity.

Product Specifications

Specifications Body Material

beryllium-copper hardened

Specifications Cable Group

Y10

Specifications Cable Type

semi-rigid

Specifications Centre Contacts

beryllium-copper hardened

Specifications Centre Contact Resistance M Ohms

Specifications Configuration

straight bulkhead

Specifications Connection

female

Specifications Connector Series

Specifications Contact Captivation Lbs

>4.9

Specifications Dielectic Withstanding Voltage Sea Level V Rms

750

Specifications Durability Matings

>500

Specifications Frequency Ghz

DC...40

Specifications Impedance Ohms

Specifications Insulation Resistance M Ohms

>5000

Specifications Mounting Hole

ML 35

Specifications Outside Contact Resistance M Ohms

Specifications Packaging

single

Specifications Support Beads

PPO

Specifications Temperature Range Degrees F

-67 to 257

Specifications Working Voltage Sea Level V Rms

<250
