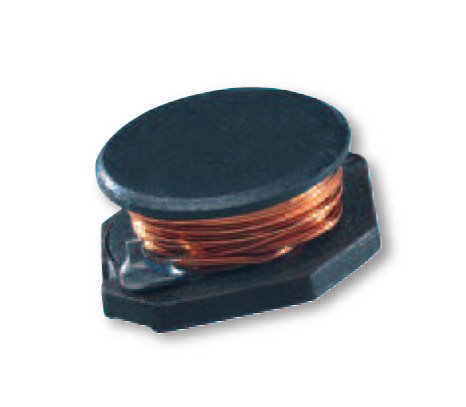

Slim SMD Power Shielded Inductor - AX97 Series
Slim SMD Power Shielded Inductor - AX97 Series
SKU:IND-f76f04
High-performance slim SMD inductors with low resistance and excellent DC current characteristics.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Slim SMD Power Shielded Inductor - AX97 Series
$12.99
Quantity: 1
Claim Your Seller Account
Slim SMD Power Shielded Inductor - AX97 Series
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AX97 Series SMD Power Shielded Inductors are meticulously designed for efficient power handling with low resistance and high DC current characteristics. With an inductance of 47.0 µH and a maximum DC resistance of 0.160 Ohm, these inductors are ideal for applications in Laptop and Notebook Computers, DC/DC Converters, Portable Communication Equipment, and general purpose use. Their compact dimensions make them versatile and well-suited for various electronic devices.
Product Specifications
Applications 0
Laptop and Notebook Computers and PDAsDC/DC ConvertersPortable Communication EquipmentInductor for General Purpose Use
Specifications Current Rating
2.00 A
Specifications Dimension A
0.530 in | 13.46 mm
Specifications Dimension B
0.370 in | 9.40 mm
Specifications Dimension C
0.232 in | 5.90 mm
Specifications Dimension D
0.404 in | 10.26 mm
Specifications Dimension E
0.120 in | 3.05 mm
Specifications Dimension F
0.135 in | 3.43 mm
Specifications Inductance H 20
47.0 µH
Specifications Max Dc Resistance At 25
0.160 Ohm
