SM2V Series Stainless Steel Instrumentation Manifold Valve
SM2V Series Stainless Steel Instrumentation Manifold Valve
SKU:SM2-175e77
High-performance stainless steel manifold valve rated up to 6000 psig with PTFE packing and factory-tested for leak prevention.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
SM2V Series Stainless Steel Instrumentation Manifold Valve
$249.99
Quantity: 1
Claim Your Seller Account
SM2V Series Stainless Steel Instrumentation Manifold Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SM2V Series Direct Mounting Vertical Style Instrumentation Manifold Valve offers exceptional performance in industrial settings. With a pressure rating of 6000 psig, optional Grafoil packing for temperatures up to 1200°F, and a maximum allowable leak rate of 0.1 cm³/min, this valve ensures reliable operation. The 316 stainless steel construction with PTFE packing and factory testing with nitrogen gas demonstrate its quality and durability. Suitable for diverse applications, this valve meets stringent industry standards for precision and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features

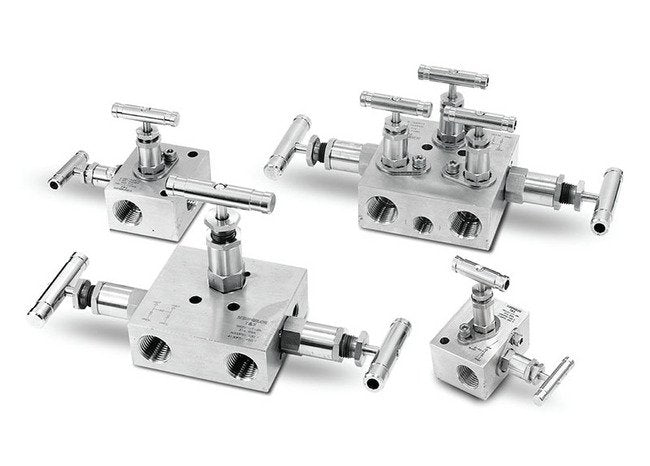

2-,3-,and 5-valves Instrument manifolds valves.All 316 stainless steel construction with PTFE packingEach valve of every manifold is factory tested with nitrogen gas to a maximum allowable leak rate of 0.1scc/min.
Note Note

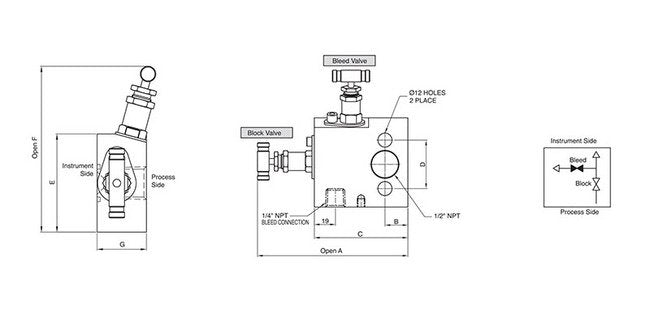

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Bleed End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Instrument End Connections
Flange
Technical Specs Maximum Allowable Leak Rate
0.1 cm³/min
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
6000 psig | 413 bar
Technical Specs Process End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Temperature With Optional Grafoil Packing
1200 ºF | 648 ºC
Weight Dimension Dimension A
116.0 mm
Weight Dimension Dimension B
17.0 mm
Weight Dimension Dimension C
63.5 mm
Weight Dimension Dimension D
41.4 mm
Weight Dimension Dimension E
63.5 mm
Weight Dimension Dimension F
115.0 mm
Weight Dimension Dimension G
28.6 mm
