SM3V Series Dual Flange Instrumentation Manifold Valve
SM3V Series Dual Flange Instrumentation Manifold Valve
SKU:SM3-528832
High-performance SM3V Series Dual Flange Instrumentation Manifold Valve for precise pressure control in industrial applications.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
SM3V Series Dual Flange Instrumentation Manifold Valve
$239.99
Quantity: 1
Claim Your Seller Account
SM3V Series Dual Flange Instrumentation Manifold Valve
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SM3V Series Dual Flange Instrumentation Manifold Valve is a high-performance solution designed for precision control in industrial settings. With a pressure rating of 6000 psig and superior construction using 316 stainless steel, this valve ensures optimal performance and reliability. Each valve undergoes rigorous testing to meet a maximum leak rate of 0.1scc/min, guaranteeing safety and efficiency in operation. The versatile design accommodates 2-, 3-, and 5-valve configurations, making it ideal for a wide range of instrumentation applications.
Product Specifications
Features Features

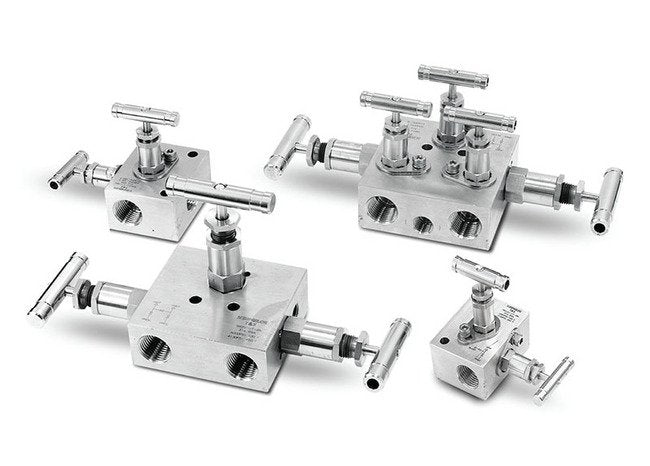

2-,3-,and 5-valves Instrument manifolds valves.All 316 stainless steel construction with PTFE packingEach valve of every manifold is factory tested with nitrogen gas to a maximum allowable leak rate of 0.1scc/min.
Note Note

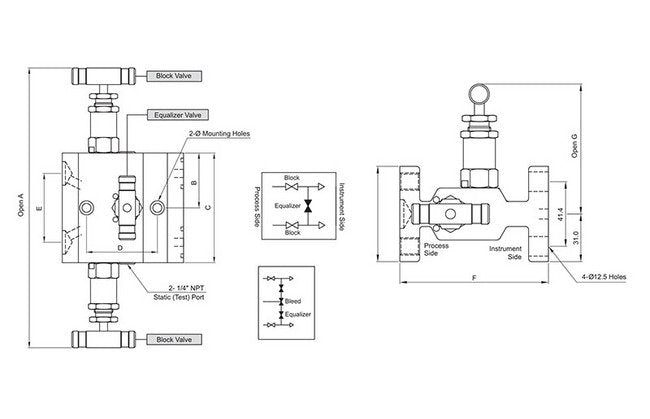

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Instrument End Connections
Flange
Technical Specs Maximum Allowable Leak Rate
0.1 cm³/min
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
6000 psig | 413 bar
Technical Specs Process End Connections
Flange
Technical Specs Temperature With Optional Grafoil Packing
1200 ºF | 648 ºC
Weight Dimension Dimension A
228.0 mm
Weight Dimension Dimension B
43.0 mm
Weight Dimension Dimension C
86.0 mm
Weight Dimension Dimension D
55.6 mm
Weight Dimension Dimension E
54.0 mm
Weight Dimension Dimension F
96.4 mm
Weight Dimension Dimension G
87.7 mm
Weight Dimension Dimension H
62.0 mm
