The SM3V Series Direct Mounting Horizontal Single Flange Style Instrumentation Manifold Valve is engineered for precise control and reliable performance in industrial settings. With a pressure rating of 6000 psig and maximum temperature of 1200°F, this valve ensures robust functionality. Each valve is factory tested for leak rate compliance and features all 316 stainless steel construction with PTFE packing, guaranteeing durability and efficiency. Ideal for institutional procurement due to its compliance with federal standards and industry certifications.
Product Specifications
Features Features

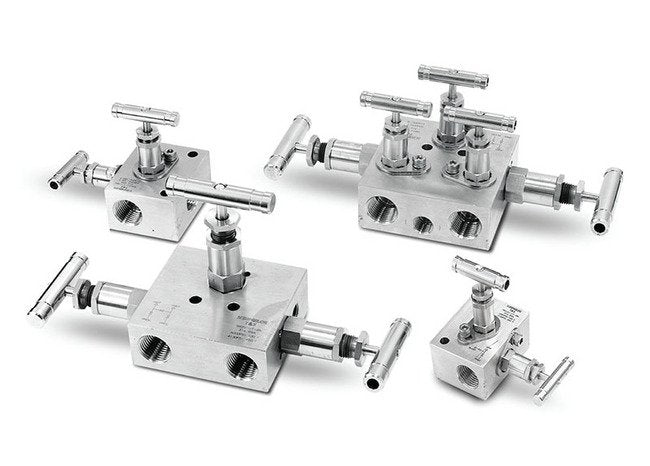

2-,3-,and 5-valves Instrument manifolds valves.All 316 stainless steel construction with PTFE packingEach valve of every manifold is factory tested with nitrogen gas to a maximum allowable leak rate of 0.1scc/min.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Instrument End Connections
Flange
Technical Specs Maximum Allowable Leak Rate
0.1 cm³/min
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
6000 psig | 413 bar
Technical Specs Process End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Temperature With Optional Grafoil Packing
1200 ºF | 648 ºC

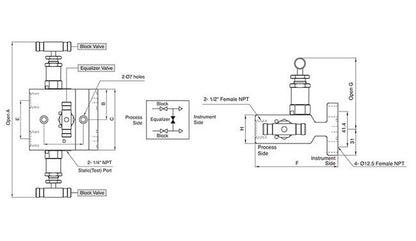

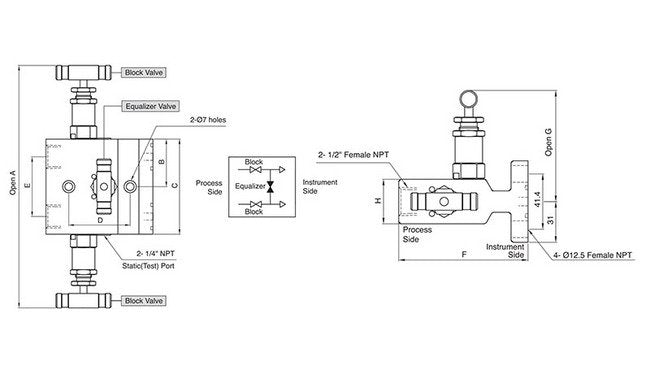

Weight Dimension Dimension A
228.0 mm
Weight Dimension Dimension B
43.0 mm
Weight Dimension Dimension C
86.0 mm
Weight Dimension Dimension D
55.6 mm
Weight Dimension Dimension E
54.0 mm
Weight Dimension Dimension F
97.0 mm
Weight Dimension Dimension G
87.7 mm
Weight Dimension Dimension H
31.8 mm
