SM3V Series Vertical Instrumentation Manifold Valve
SM3V Series Vertical Instrumentation Manifold Valve
SKU:SM3-375aa6
Precision-engineered SM3V Series Vertical Instrumentation Manifold Valve for industrial applications. Pressure rating up to 6000 psig, ideal for high-temperature environments, with 316 stainless steel construction and low leak rate.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
SM3V Series Vertical Instrumentation Manifold Valve
$249.99
Quantity: 1
Claim Your Seller Account
SM3V Series Vertical Instrumentation Manifold Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SM3V Series Vertical Instrumentation Manifold Valve is a reliable solution designed for industrial applications requiring precise pressure control. With a pressure rating of 6000 psig, optional Grafoil packing for temperatures up to 1200°F, and 316 stainless steel construction, this valve ensures durability and high performance. Each manifold valve undergoes rigorous nitrogen gas testing to meet a maximum leak rate of 0.1scc/min, guaranteeing efficiency and safety in operation.
Product Specifications
Features Features

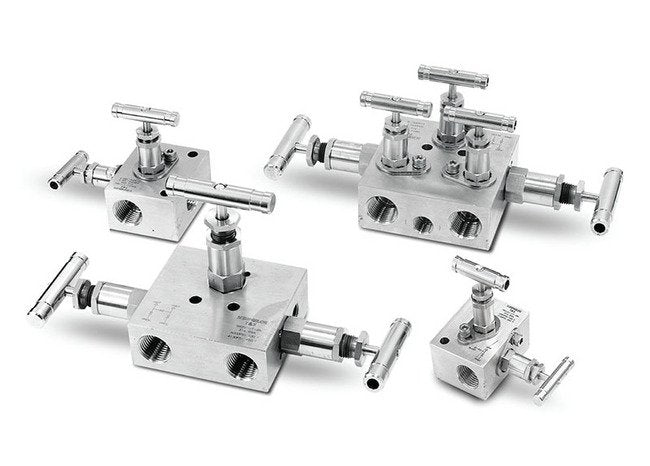

2-,3-,and 5-valves Instrument manifolds valves.All 316 stainless steel construction with PTFE packingEach valve of every manifold is factory tested with nitrogen gas to a maximum allowable leak rate of 0.1scc/min.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Instrument End Connections
Flange
Technical Specs Maximum Allowable Leak Rate
0.1 cm³/min
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
6000 psig | 413 bar
Technical Specs Process End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Temperature With Optional Grafoil Packing
1200 ºF | 648 ºC

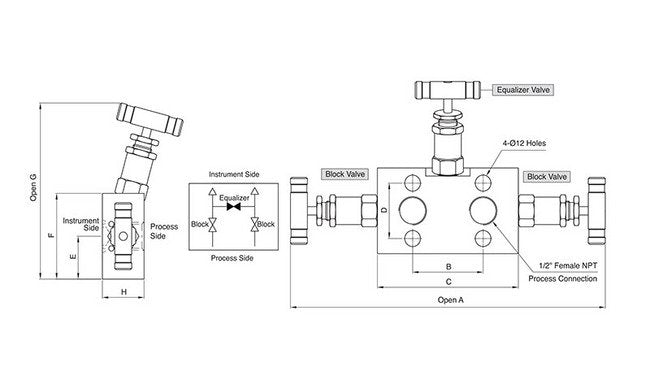

Weight Dimension Dimension A
250.0 mm
Weight Dimension Dimension B
54.0 mm
Weight Dimension Dimension C
108.0 mm
Weight Dimension Dimension D
41.4 mm
Weight Dimension Dimension E
32.0 mm
Weight Dimension Dimension F
64.0 mm
Weight Dimension Dimension G
136.0 mm
Weight Dimension Dimension H
32.0 mm
