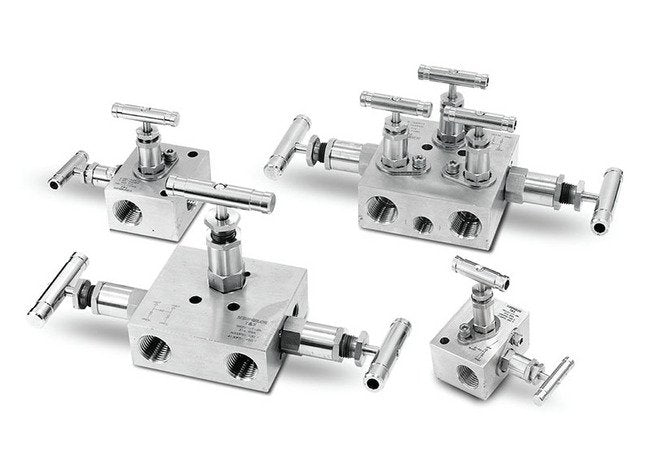

SM5V Series Instrumentation Manifold Valve - Direct Mounting Horizontal Single Flange
SM5V Series Instrumentation Manifold Valve - Direct Mounting Horizontal Single Flange
SKU:SM5-87d687
High-pressure instrumentation manifold valve with precise control and high-temperature resistance for industrial applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
SM5V Series Instrumentation Manifold Valve - Direct Mounting Horizontal Single Flange
$249.99
Quantity: 1
Claim Your Seller Account
SM5V Series Instrumentation Manifold Valve - Direct Mounting Horizontal Single Flange
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SM5V Series Direct Mounting Horizontal Single Flange Style Instrumentation Manifold Valve is designed for high-pressure applications with a pressure rating of 6000 psig. It features process end connections of 1/2 in. FNPT and bleeder end connections of 1/4 in. FNPT, providing reliable and precise instrumentation control. With a temperature rating of up to 1200°F and a low leak rate of 0.1 cm³/min, this valve ensures safe and efficient performance in demanding industrial settings. Its robust construction and optional Grafoil packing enhance durability for long-term use.
Product Specifications
Note Note

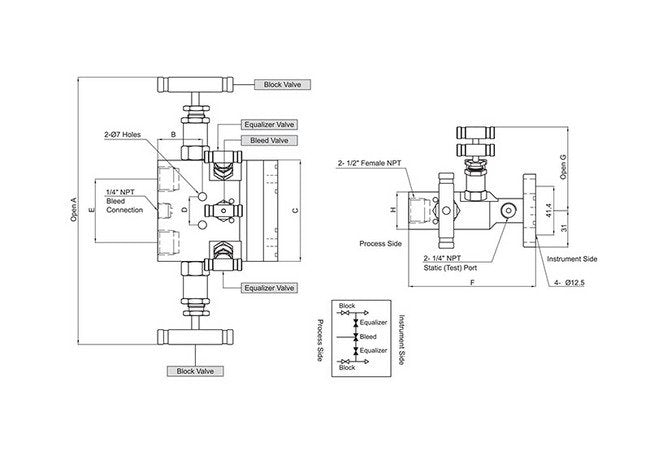

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Bleed End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Instrument End Connections
Flange
Technical Specs Maximum Allowable Leak Rate
0.1 cm³/min
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
6000 psig | 413 bar
Technical Specs Process End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Temperature With Optional Grafoil Packing
1200 ºF | 648 ºC
Weight Dimension Dimension A
228.0 mm
Weight Dimension Dimension B
38.0 mm
Weight Dimension Dimension C
86.0 mm
Weight Dimension Dimension D
24.0 mm
Weight Dimension Dimension E
54.0 mm
Weight Dimension Dimension F
108.0 mm
Weight Dimension Dimension G
69.0 mm
Weight Dimension Dimension H
31.8 mm
