SM5V Series Remote Mounting Instrumentation Manifold Valve
SM5V Series Remote Mounting Instrumentation Manifold Valve
SKU:SM5-343994
SM5V Series Instrumentation Manifold Valve, Pressure Rating: 6000 psig, Temp Range: Up to 1200°F, 1/2 in. FNPT Connections
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SM5V Series Remote Mounting Instrumentation Manifold Valve
$129.99
Quantity: 1
Claim Your Seller Account
SM5V Series Remote Mounting Instrumentation Manifold Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

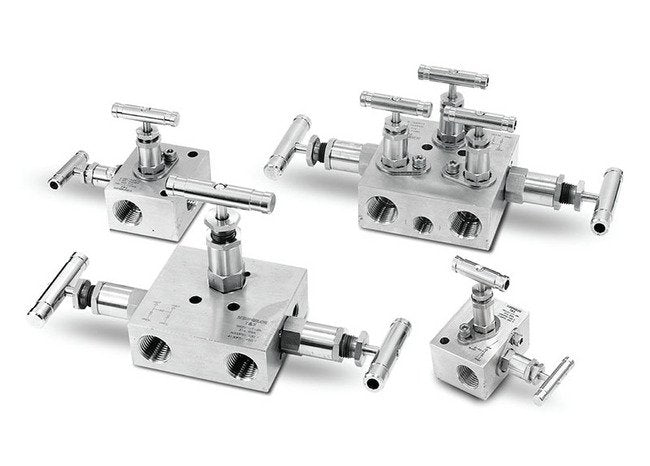

The SM5V Series Remote Mounting Horizontal Style Instrumentation Manifold Valve is engineered for industrial applications requiring precise pressure control. With a pressure rating of 6000 psig and a temperature range up to 1200°F, this valve ensures reliable performance under extreme conditions. Featuring 1/2 in. FNPT connections for process and instrument ends, and 1/4 in. FNPT for bleed, this valve offers versatility and ease of installation. The SM5V Series exemplifies durability and accuracy, making it an ideal choice for institutional buyers seeking top-tier instrumentation solutions.
Product Specifications
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Bleed End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Instrument End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Maximum Allowable Leak Rate
0.1 cm³/min
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
6000 psig | 413 bar
Technical Specs Process End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Temperature With Optional Grafoil Packing
1200 ºF | 648 ºC

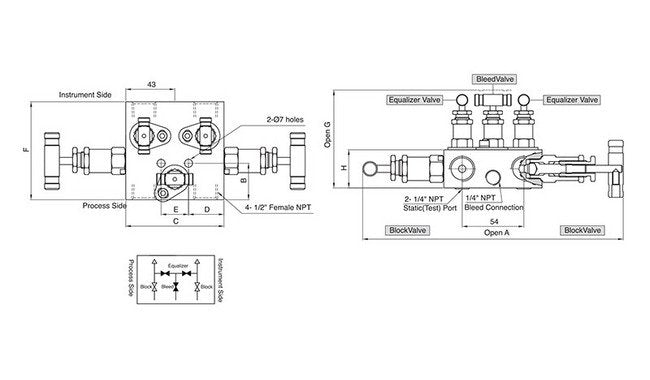

Weight Dimension Dimension A
228.0 mm
Weight Dimension Dimension B
32.0 mm
Weight Dimension Dimension C
86.0 mm
Weight Dimension Dimension D
31.0 mm
Weight Dimension Dimension E
24.0 mm
Weight Dimension Dimension F
86.0 mm
Weight Dimension Dimension G
85.9 mm
Weight Dimension Dimension H
33.5 mm
