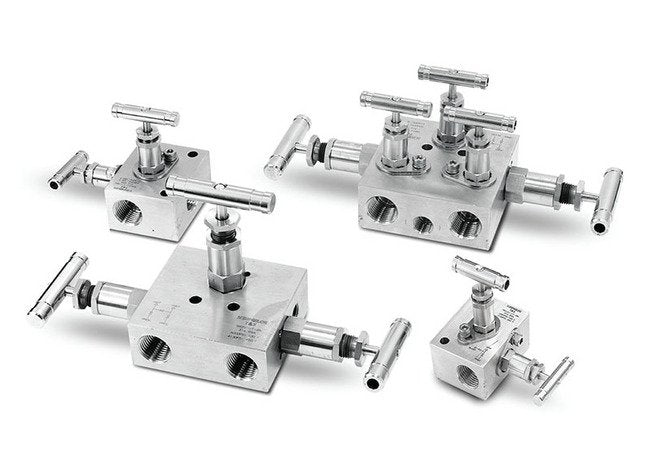

SM5V Series Vertical Instrumentation Manifold Valve
SM5V Series Vertical Instrumentation Manifold Valve
SKU:SM5-09367a
Precision control with SM5V Series Vertical Manifold Valve for industrial reliability.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
SM5V Series Vertical Instrumentation Manifold Valve
$399.99
Quantity: 1
Claim Your Seller Account
SM5V Series Vertical Instrumentation Manifold Valve
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SM5V Series Vertical Instrumentation Manifold Valve is designed for precision control in demanding industrial environments. With a pressure rating of 6000 psig and a temperature capability up to 1200°F, this valve ensures reliable performance under extreme conditions. Featuring 1/2 in. FNPT process end connections and flange instrument end connections, it offers secure and efficient installation. The compact design and durable construction make it suitable for various applications while adhering to industry standards for quality and functionality.
Product Specifications
Note Note

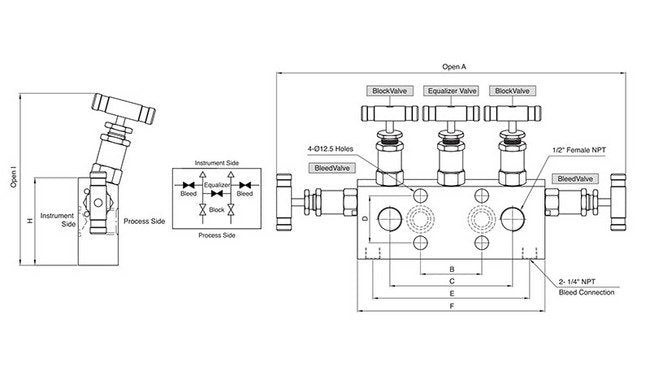

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Bleed End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Instrument End Connections
Flange
Technical Specs Maximum Allowable Leak Rate
0.1 cm³/min
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
6000 psig | 413 bar
Technical Specs Process End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Temperature With Optional Grafoil Packing
1200 ºF | 648 ºC
Weight Dimension Dimension A
312.0 mm
Weight Dimension Dimension B
54.0 mm
Weight Dimension Dimension C
102.0 mm
Weight Dimension Dimension D
41.4 mm
Weight Dimension Dimension E
138.0 mm
Weight Dimension Dimension F
158.0 mm
Weight Dimension Dimension G
148.0 mm
Weight Dimension Dimension H
76.2 mm
Weight Dimension Dimension I
32.0 mm
