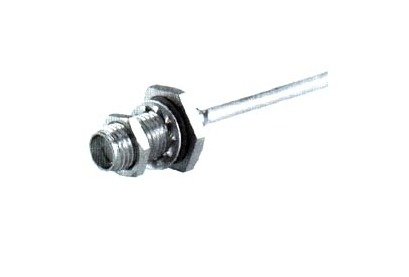

SMA Bulkhead Cable Plugs (Female, Straight)
SMA Bulkhead Cable Plugs (Female, Straight)
SKU:SMA-9a6372
High-performance SMA Bulkhead Cable Plugs for seamless connectivity up to 18 GHz. Quality construction for reliable signal transmission.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
SMA Bulkhead Cable Plugs (Female, Straight)
$279.99
Quantity: 1
Claim Your Seller Account
SMA Bulkhead Cable Plugs (Female, Straight)
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior connectivity with our SMA Bulkhead Cable Plugs. Designed for reliability, these plugs feature a frequency range up to 18 GHz, RF-Leakage of >100 dB, beryllium copper construction, and PTFE/PFA insulator material. With compliance to stringent industry standards, these plugs ensure optimal performance and durability.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y3, Y11
Specifications Cable Type
semi-rigid
Specifications Configuration
straight bulkhead
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Mounting Hole
ML 20
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
