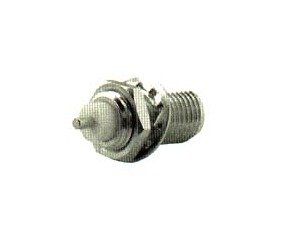

SMA Female Bulkhead Receptacle with Coaxial End
SMA Female Bulkhead Receptacle with Coaxial End
SKU:SMA-72217a
High-performance SMA Female Bulkhead Receptacle for DC to 18GHz applications, featuring 50 ohms impedance and stainless steel body.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMA Female Bulkhead Receptacle with Coaxial End
$29.99
Quantity: 1
Claim Your Seller Account
SMA Female Bulkhead Receptacle with Coaxial End
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMA Female Bulkhead Receptacle with Coaxial End is designed to meet the demanding requirements of high-frequency applications. With an impedance of 50 ohms and a frequency range spanning from DC to 18 GHz, this stainless steel receptacle ensures reliable connectivity. The bulkhead configuration and mounting hole compatibility make installation seamless while the .066/.117 cable dielectric diameter provides optimal signal transmission. Ideal for aerospace, defense, and telecommunications industries, this SMA receptacle guarantees precision and durability in every connection.
Product Specifications
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Configuration
bulkhead receptacle
Specifications Connection
female
Specifications Connector Series
SMA
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Mounting Hole
ML 98
Specifications Packaging
single
Specifications Plating Body
stainless steel
