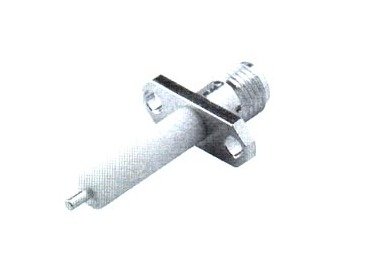

SMA Female Coaxial Panel Mount Receptacle
SMA Female Coaxial Panel Mount Receptacle
SKU:SMA-83ed58
High-performance SMA Female Coaxial Receptacle for reliable high-frequency connections in panel installations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMA Female Coaxial Panel Mount Receptacle
$29.99
Quantity: 1
Claim Your Seller Account
SMA Female Coaxial Panel Mount Receptacle
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMA Female Coaxial Panel Mount Receptacle is designed to meet the demands of high-frequency applications, with a frequency range of DC - 18 GHz and impedance of 50 ohms. Featuring gold plating for enhanced durability, this receptacle ensures reliable connections. Suitable for panel installations and equipped with extended dielectric, it offers superior performance and longevity.
Product Specifications
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Configuration
panel mount receptacle
Specifications Connection
female
Specifications Connector Series
SMA
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Notes
extended dielectic
Specifications Packaging
single
Specifications Plating Body
gold
