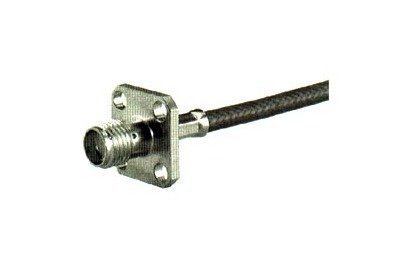

SMA Female Panel Cable Plugs (Straight, RG 316, K02252D)
SMA Female Panel Cable Plugs (Straight, RG 316, K02252D)
SKU:SMA-0b8c45
Enhance connectivity with SMA Female Panel Cable Plugs - high-frequency range, superior RF-Leakage, and durable construction. Compliant with Federal standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SMA Female Panel Cable Plugs (Straight, RG 316, K02252D)
$39.99
Quantity: 1
Claim Your Seller Account
SMA Female Panel Cable Plugs (Straight, RG 316, K02252D)
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your connectivity with our SMA Female Panel Cable Plugs. Designed for performance, these plugs feature a frequency range up to 18GHz, RF-Leakage exceeding 60dB, and a robust construction with materials like beryllium copper and PTFE/PFA insulator. With compliance to various standards, including Federal procurement requirements and NIST guidelines, these connectors ensure reliability and durability for critical applications.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U4
Specifications Cable Type
flexible
Specifications Configuration
straight panel
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Mounting Hole
ML 19
Specifications Packaging
single
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
