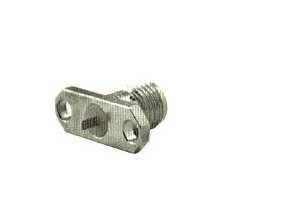

SMA Female Panel Launchers
SMA Female Panel Launchers
SKU:SMA-13ef7d
High-performance SMA Female Panel Launchers for precise connectivity in stripline applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMA Female Panel Launchers
$29.99
Quantity: 1
Claim Your Seller Account
SMA Female Panel Launchers
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your connectivity with our SMA Female Panel Launchers. Designed for optimal performance, these connectors feature a stainless steel body, a frequency range of DC - 18 GHz, and impedance of 50 ohms. With a flush dielectric configuration and precise cable dielectric diameter of .066/.117 inches, these launchers ensure reliable connections in stripline applications.
Product Specifications
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Configuration
panel launcher
Specifications Connection
female
Specifications Connector Series
SMA
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Notes
flush dielectic
Specifications Packaging
single
Specifications Plating Body
stainless steel
