SMA Female Panel Mount Receptacle with Coaxial End

Name: SMA Female Panel Mount Receptacle with Coaxial End
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-b24b9b
Price: 59.99 USD
Availability: OutOfStock

SKU:SMA-b24b9b

High-performance SMA Female Panel Mount Receptacle with Coaxial End for reliable signal transmission in professional applications.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

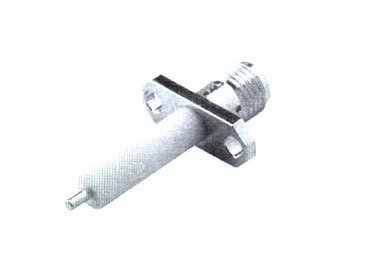

The SMA Female Panel Mount Receptacle with Coaxial End is a high-quality connector designed for professional applications. With a cable dielectric diameter of .066/.117 inches, 50-ohm impedance, and a frequency range of DC - 18 GHz, it ensures reliable signal transmission. This connector features gold plating, bulk packaging of 100 pieces, and an extended dielectric for optimal performance. Ideal for panel installations, this SMA receptacle meets stringent industry standards for durability and precision.

Product Specifications

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Configuration

panel mount receptacle

Specifications Connection

female

Specifications Connector Series

SMA

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Notes

extended dielectic

Specifications Packaging

bulk 100 pcs.

Specifications Plating Body

gold

SMA Female Panel Mount Receptacle with Coaxial End
