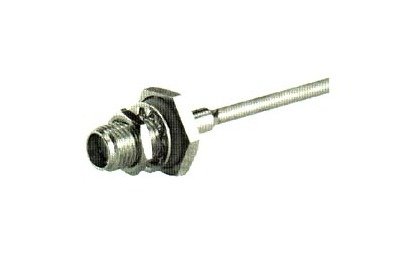

SMA Female Straight Bulkhead Cable Plugs
SMA Female Straight Bulkhead Cable Plugs
SKU:SMA-402c54
High-performance SMA Female Straight Bulkhead Cable Plugs for up to 18 GHz, ensuring reliable connectivity and signal integrity.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
SMA Female Straight Bulkhead Cable Plugs
$99.99
Quantity: 1
Claim Your Seller Account
SMA Female Straight Bulkhead Cable Plugs
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMA Female Straight Bulkhead Cable Plugs are designed for high-frequency applications up to 18 GHz. With a working voltage of 250V, RF-leakage exceeding 100dB, and gold body plating, these connectors ensure reliable performance and signal integrity. Crafted from beryllium copper and PTFE insulator material, they meet stringent industry standards for durability and quality.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y3, Y11
Specifications Cable Type
semi-rigid
Specifications Configuration
straight bulkhead
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Mounting Hole
ML 35
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
