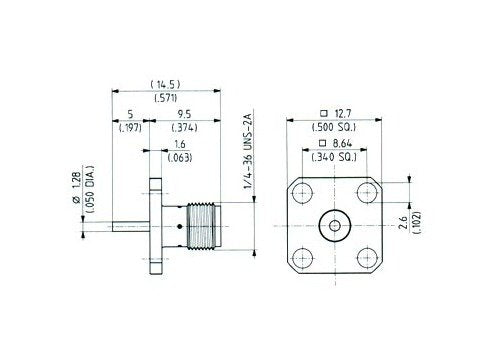

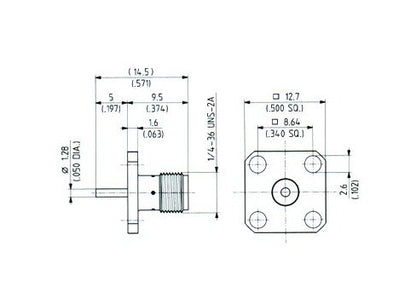

SMA Receptacles with Coaxial End, Female Jack

Name: SMA Receptacles with Coaxial End, Female Jack
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-1048b7
Price: 24.99 USD
Availability: OutOfStock

SKU:SMA-1048b7

Premium SMA female jack receptacles with superior RF signal transmission capabilities

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SMA Receptacles with Coaxial End, Female Jack are precision-engineered connectors designed for optimal performance in high-frequency applications. With a cable dielectric diameter of .066/.117 inches, 50-ohm impedance, and a frequency range of DC - 18 GHz, these panel mount receptacles ensure reliable signal transmission. Featuring gold plating for enhanced durability and a flush dielectric configuration, these connectors meet the highest standards of quality and performance in RF connectivity.

Product Specifications

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Configuration

panel mount receptacle

Specifications Connection

female

Specifications Connector Series

SMA

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Notes

flush dielectic

Specifications Packaging

single

Specifications Plating Body

gold

SMA Receptacles with Coaxial End, Female Jack
