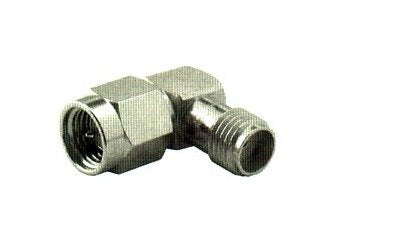

SMA Right Angle Adaptor Plug to Jack

Name: SMA Right Angle Adaptor Plug to Jack
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-a97266
Price: 24.99 USD
Availability: OutOfStock

SKU:SMA-a97266

Enhance RF connectivity with precision SMA right angle adaptors, ideal for DC to 18 GHz frequency range. Female-male configuration in stainless steel.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

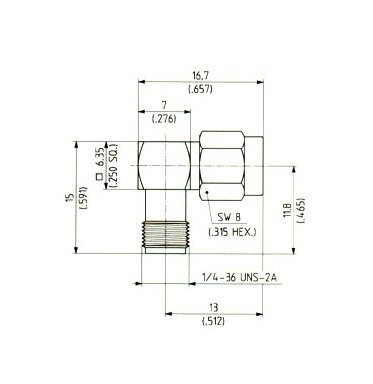

Enhance your RF connectivity with our SMA subminiature right angle adaptors. Designed for precision, these adaptors facilitate seamless connections with a dielectric dia. of .066/.117 inches and an impedance of 50 ohms. With a frequency range spanning from DC to 18 GHz, these stainless steel adaptors ensure reliable data transmission. The female-to-male configuration and right angle design optimize space utilization while maintaining signal integrity. VSWR ratings of 1.02 + 0.03 up to 14 GHz and 1.92 from 14-18 GHz attest to the performance excellence of these SMA adaptors.

Product Specifications

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Configuration

right angle

Specifications Connection

female-male

Specifications Connector Series

SMA

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Packaging

single

Specifications Plating Body

stainless steel

Specifications Vswr 14 18 Ghz F

1.92

Specifications Vswr Dc14 Ghz F

1.02 + 0.03
