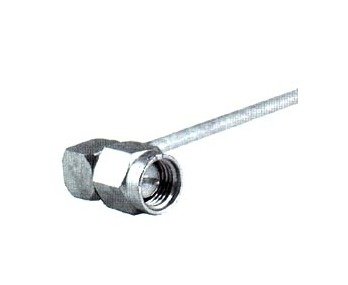

SMA Right Angle Cable Plugs (Male) - EZ 86
SMA Right Angle Cable Plugs (Male) - EZ 86
SKU:SMA-f70820
Enhance connectivity with our SMA Right Angle Cable Plugs (Male) - EZ 86. Optimal performance for demanding environments.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SMA Right Angle Cable Plugs (Male) - EZ 86
$24.99
Quantity: 1
Claim Your Seller Account
SMA Right Angle Cable Plugs (Male) - EZ 86
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience seamless connectivity with our SMA Right Angle Cable Plugs (Male) EZ 86. Designed for optimal performance, these plugs feature specifications like a frequency range of DC - 18 GHz, impedance of 50 ohms, and a working voltage of 250 V rms. Crafted from durable materials including Beryllium copper and PTFE insulators, these plugs ensure reliability and longevity in demanding environments. Compliant with federal procurement standards and industry certifications, our cable plugs are the perfect choice for both consumer and institutional applications.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y3, Y11
Specifications Cable Type
semi-rigid
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
single
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
