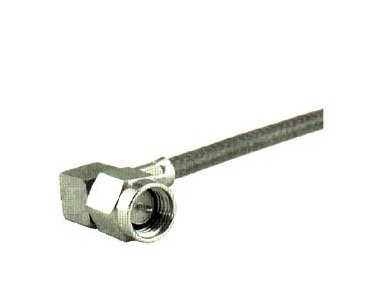

SMA Right Angle Cable Plugs (Male) - Premium Grade
SMA Right Angle Cable Plugs (Male) - Premium Grade
SKU:SMA-d8ca4c
Premium grade SMA Right Angle Cable Plugs (Male) with high-frequency range, gold plating, and hardened contacts for reliable RF signal connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMA Right Angle Cable Plugs (Male) - Premium Grade
$29.99
Quantity: 1
Claim Your Seller Account
SMA Right Angle Cable Plugs (Male) - Premium Grade
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your RF signal connections with our SMA Right Angle Cable Plugs (Male). Designed for high-performance applications, these plugs feature a corrosion-resistant body, hardened beryllium copper contacts, and PTFE/PFA insulators. With an impedance of 50 ohms, a frequency range of DC-18 GHz, and gold-plated components, these cable plugs ensure reliable conductivity and durability. Ideal for up to 18 GHz applications, the SMA connectors are engineered to meet strict industry standards for quality and performance.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U2
Specifications Cable Type
flexible
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
