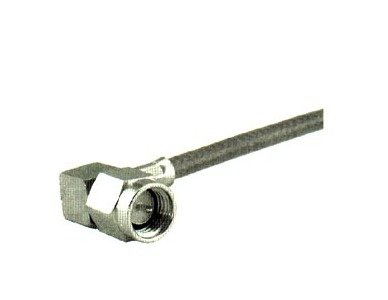

SMA Right Angle Cable Plugs (Male) - RG 178, 316, K02252D

Name: SMA Right Angle Cable Plugs (Male) - RG 178, 316, K02252D
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-8680e7
Price: 49.99 USD
Availability: OutOfStock

SKU:SMA-8680e7

Enhance RF connections with SMA Right Angle Cable Plugs feat. high-frequency range & durable beryllium copper construction.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your connectivity with precision-engineered SMA Right Angle Cable Plugs designed for premium performance in RF applications. These plugs set the industry standard with specifications including a frequency range up to 18 GHz, high RF-Leakage of over 60 dB, and durable construction materials like beryllium copper for optimal signal transmission. Ideal for SMA Cable Connectors up to 18 Ghz, these plugs boast PTFE or PFA insulator materials and a temperature range from -85 to 329 degrees F for reliable operations in diverse environments.

Product Specifications

Specifications Body Material

Beryllium copper, hardened

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Cable Group

Specifications Cable Type

flexible

Specifications Configuration

right angle

Specifications Connection

male

Specifications Connector Series

<2.5

Specifications Contact Captivation Lbs

SMA

Specifications Contact Resistance Centre Contact Ohms

<65/<85

Specifications Contact Resistance Outer Contact Ohms

Specifications Corona Extinction Voltage V Rms

<250/<335

Specifications Crimp Ferrule Material

copper, brass

Specifications Dielectic Withstanding Voltage V Rms

750/1000

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Insulator Material

PTFE or PFA

Specifications Packaging

bulk 100 pcs.

Specifications Pin Contact Material

Beryllium copper, hardened

Specifications Plating Body

gold

Specifications Rf Leakage Db

>60

Specifications Socket Contact Material

Beryllium copper, hardened

Specifications Temperature Range Degrees F

-85 to 329

Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol

190/250
