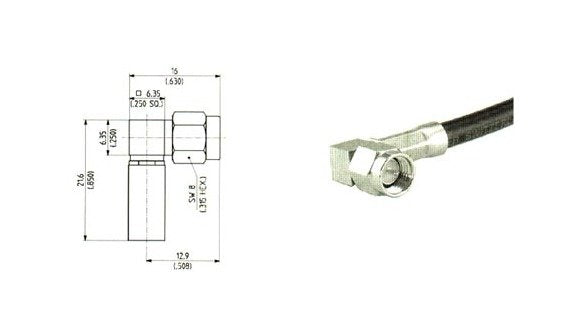

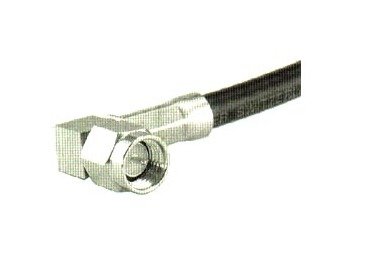

SMA Right Angle Cable Plugs (Male) - RG 58, 400
SMA Right Angle Cable Plugs (Male) - RG 58, 400
SKU:SMA-12f65f
Precision engineered SMA Right Angle Cable Plugs for seamless connectivity in DC - 18 GHz range. Ideal for institutional use.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
SMA Right Angle Cable Plugs (Male) - RG 58, 400
$12.99
Quantity: 1
Claim Your Seller Account
SMA Right Angle Cable Plugs (Male) - RG 58, 400
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your connections with precision and reliability using our SMA Right Angle Cable Plugs meticulously designed for superior performance. Operating seamlessly within a frequency range of DC - 18 GHz and boasting robust construction with beryllium copper components, these plugs ensure low RF-Leakage, high dielectric withstanding voltage, and temperature endurance from -85 to 329 degrees F. Compliant with federal procurement standards, these plugs are ideal for institutional and government applications.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U9, U11
Specifications Cable Type
flexible
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
single
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
