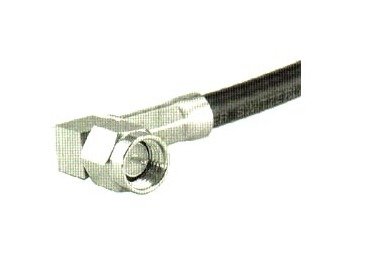

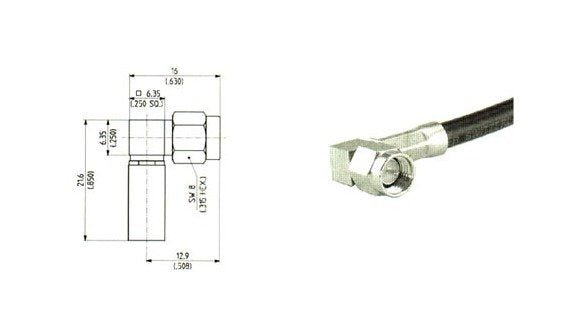

SMA Right Angle Cable Plugs (Male) - RG 58, 400
SMA Right Angle Cable Plugs (Male) - RG 58, 400
SKU:SMA-feea40
Enhance connectivity with SMA Right Angle Cable Plugs (Male) for high-frequency applications. Compliant and durable.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMA Right Angle Cable Plugs (Male) - RG 58, 400
$29.99
Quantity: 1
Claim Your Seller Account
SMA Right Angle Cable Plugs (Male) - RG 58, 400
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your connectivity with our SMA Right Angle Cable Plugs (Male) - RG 58, 400. Designed to meet the rigorous demands of high-frequency transmission, these plugs offer a robust beryllium copper construction, gold plating, and PTFE/PFA insulator for exceptional performance. With compliance to industry standards and a frequency range up to 18 GHz, these connectors ensure reliable connections in diverse applications.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U7
Specifications Cable Type
flexible
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
