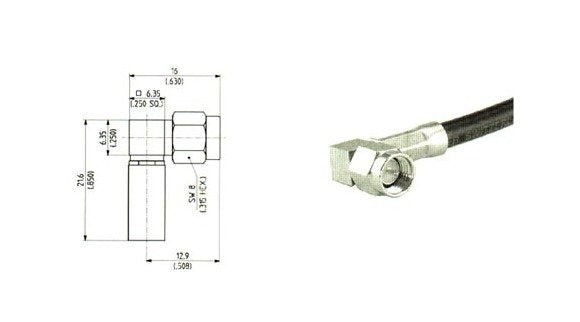

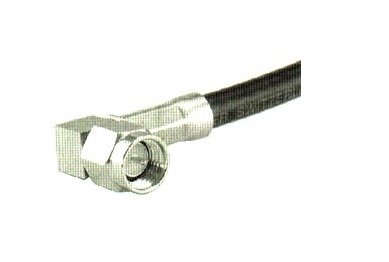

SMA Right Angle Cable Plugs (Male) - RG58, 400
SMA Right Angle Cable Plugs (Male) - RG58, 400
SKU:SMA-9241b7
Enhance connectivity with SMA Right Angle Cable Plugs (Male) - RG58, 400. High-performance, durable, and compliant for diverse applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMA Right Angle Cable Plugs (Male) - RG58, 400
$29.99
Quantity: 1
Claim Your Seller Account
SMA Right Angle Cable Plugs (Male) - RG58, 400
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your connectivity with our SMA Right Angle Cable Plugs designed for precision and reliability. With features like high RF-Leakage, low contact resistance, and a wide frequency range of up to 18 GHz, these plugs ensure optimal performance in demanding environments. Crafted from quality materials and meeting stringent industry standards, they offer exceptional durability and compliance for both consumer and institutional applications.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U9, U11
Specifications Cable Type
flexible
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
