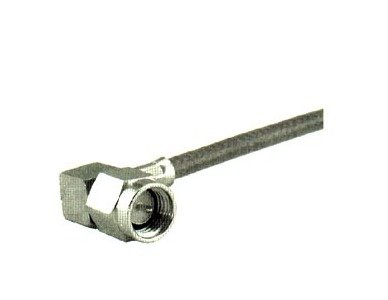

SMA Right Angle Male Cable Plugs (RG 178, 316, K02252D)

SMA Right Angle Male Cable Plugs (RG 178, 316, K02252D)

SMA-bcf7c4

High-performance SMA Right Angle Male Cable Plugs for reliable connectivity up to 18 GHz, featuring durable materials and exceptional RF-Leakage performance.

$29.99
$29.99
Sale

Initiate Order

SMA Right Angle Male Cable Plugs (RG 178, 316, K02252D)

SMA Right Angle Male Cable Plugs (RG 178, 316, K02252D)

$29.99

Quantity: 1

Claim Your Seller Account

SMA Right Angle Male Cable Plugs (RG 178, 316, K02252D)

SMA Right Angle Male Cable Plugs (RG 178, 316, K02252D)

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Enhance your connectivity with our SMA Right Angle Male Cable Plugs designed for precise transmission at frequencies up to 18 GHz. Featuring hardened Beryllium copper construction, PTFE/PFA insulator, and RF-Leakage exceeding 60 dB, these plugs ensure reliable performance in a wide temperature range from -85°F to 329°F. With compliance to stringent standards and beryllium-free options available, our cable plugs guarantee secure connections for critical applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U2
Specifications Cable Type
flexible
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
