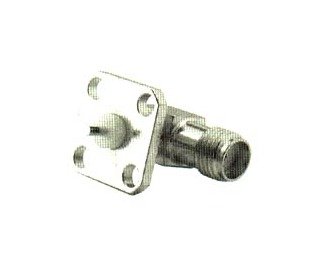

SMA Right Angle Receptacle with Solder End, Female Jack
SMA Right Angle Receptacle with Solder End, Female Jack
SKU:SMA-1285da
High-quality SMA right angle receptacle with solder end, female jack for reliable panel mount connections. Impedance: 50 ohms, Frequency Range: DC - 18GHz.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SMA Right Angle Receptacle with Solder End, Female Jack
$129.99
Quantity: 1
Claim Your Seller Account
SMA Right Angle Receptacle with Solder End, Female Jack
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMA Right Angle Receptacle with Solder End, Female Jack is designed for high-performance applications requiring a secure, panel mount right angle connection. With a gold-plated body ensuring reliable conductivity, this receptacle offers an impedance of 50 ohms and a frequency range of up to 18 GHz. The bulk packaging of 100 pieces makes it convenient for large-scale installations. Ideal for industries that demand precision and durability.
Product Specifications
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Configuration
panel mount right angle receptacle
Specifications Connection
female
Specifications Connector Series
SMA
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Packaging
bulk 100 pcs.
Specifications Plating Body
gold
