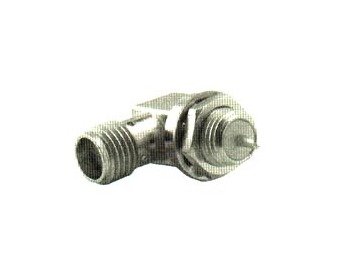

SMA Right Angle Receptacles with Solder End (Female Jack)
SMA Right Angle Receptacles with Solder End (Female Jack)
SKU:SMA-66670f
High-performance SMA female jack right angle receptacles with solder end for reliable signal transmission in high-frequency applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SMA Right Angle Receptacles with Solder End (Female Jack)
$24.99
Quantity: 1
Claim Your Seller Account
SMA Right Angle Receptacles with Solder End (Female Jack)
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMA Right Angle Receptacles with Solder End (Female Jack) are precision-engineered connectors designed for high-frequency applications. With a frequency range of DC - 18GHz and impedance of 50 ohms, these receptacles ensure reliable signal transmission. Featuring gold plating for enhanced conductivity, bulkhead right angle configuration, and a mounting hole design, these connectors offer durability and secure connections. Ideal for a wide range of SMA applications, these receptacles meet stringent industry standards for quality and performance.
Ready to Grow Without Cash Flow Constraints?

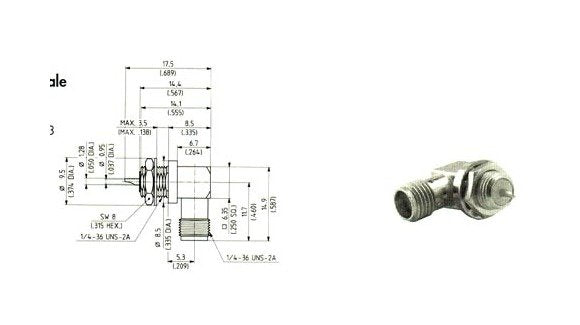

Product Specifications
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Configuration
bulkhead right angle receptacle
Specifications Connection
female
Specifications Connector Series
SMA
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Mounting Hole
ML 35
Specifications Packaging
single
Specifications Plating Body
gold
