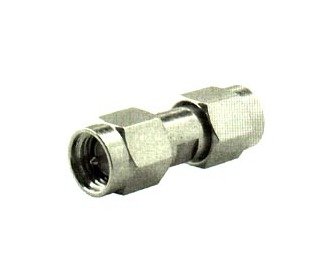

SMA Straight Adaptor Plug to Plug (Male)

Name: SMA Straight Adaptor Plug to Plug (Male)
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-285d26
Price: 24.99 USD
Availability: OutOfStock

SKU:SMA-285d26

High-quality SMA Straight Adaptor Plug to Plug (Male) for reliable signal transmission in SMA subminiature applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SMA Straight Adaptor Plug to Plug (Male) is a high-quality connector specifically designed for SMA subminiature applications. With a frequency range of DC - 18 GHz and an impedance of 50 ohms, this straight adaptor ensures efficient signal transmission. Crafted with stainless steel plating and precision engineering, it offers exceptional durability and reliability. Ideal for institutional and government buyers requiring top-notch SMA adaptors for critical applications.

Product Specifications

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Configuration

straight adaptor

Specifications Connection

male

Specifications Connector Series

SMA

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Mounting Hole

Specifications Packaging

single

Specifications Plating Body

stainless steel

Specifications Vswr 14 18 Ghz F

Specifications Vswr 3 7 Ghz F

Specifications Vswr 7 18 Ghz F

Specifications Vswr Dc14 Ghz F

Specifications Vswr Dc18 Ghz F

1.05 +0.005

Specifications Vswr Dc3 Ghz F

SMA Straight Adaptor Plug to Plug (Male)
