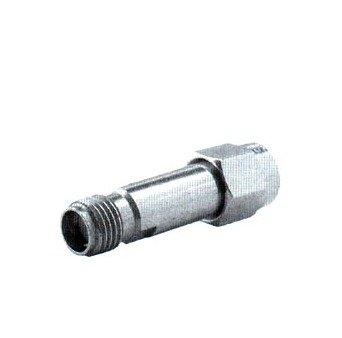

SMA Straight Adaptors - Male to Female Connectors

Name: SMA Straight Adaptors - Male to Female Connectors
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-5a7657
Price: 29.99 USD
Availability: OutOfStock

SKU:SMA-5a7657

Enhance your subminiature system with SMA Straight Adaptors. Gold-plated for signal precision, 50 ohm impedance, DC-18 GHz frequency range.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your SMA subminiature system with precision-engineered straight adaptors from HUBER+SUHNER. These male to female connectors feature gold-plated bodies, ensuring optimal signal transfer with a VSWR of 1.05+0.005 from DC up to 18 GHz. With an impedance of 50 ohms and compatibility with cable dielectric diameters of .066/.117 inches, these SMA adaptors guarantee reliable performance and durability. Ideal for applications requiring seamless connectivity and minimal signal loss.

Product Specifications

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Configuration

straight adaptor

Specifications Connection

male-female

Specifications Connector Series

SMA

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Packaging

single

Specifications Plating Body

gold

Specifications Vswr Dc18 Ghz F

1.05 +0.005
