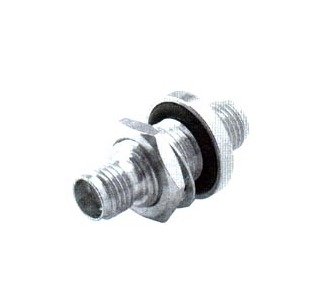

SMA Straight Bulkhead Adaptors
SMA Straight Bulkhead Adaptors
SKU:SMA-3ffa8c
Enhance connectivity with high-quality SMA straight bulkhead adaptors - impedance 50 ohms, gold-plated body, VSWR 1.05 @ 18GHz, for reliable connections.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
SMA Straight Bulkhead Adaptors
$15.99
Quantity: 1
Claim Your Seller Account
SMA Straight Bulkhead Adaptors
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your connectivity with our SMA straight bulkhead adaptors. These hermetically sealed adaptors feature gold-plated bodies, ensuring reliable connections. With an impedance of 50 ohms and a frequency range of DC - 18GHz, they provide low VSWR across frequencies. Perfect for SMA connector series, these female adaptors come in single packaging and offer a VSWR of 1.05 up to 18GHz. Enhance your setups with precision and quality.
Product Specifications
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Configuration
hermetically sealed straight bulkhead adaptor
Specifications Connection
female
Specifications Connector Series
SMA
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Mounting Hole
ML 38
Specifications Packaging
single
Specifications Plating Body
gold
Specifications Vswr 3 7 Ghz F
1.2
Specifications Vswr 7 18 Ghz F
1.3
Specifications Vswr Dc18 Ghz F
1.05 +0.005
Specifications Vswr Dc3 Ghz F
1.1
