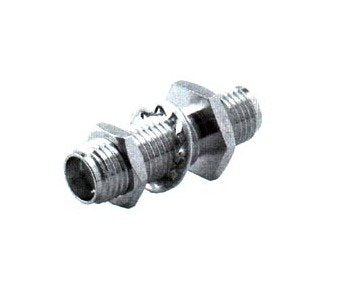

SMA Straight Bulkhead Adaptors - Female to Female

Name: SMA Straight Bulkhead Adaptors - Female to Female
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-f8c862
Price: 199.99 USD
Availability: OutOfStock

SKU:SMA-f8c862

Explore our SMA Female to Female Straight Bulkhead Adaptors for reliable, low VSWR connectivity in RF applications. Gold-plated, DC-18 GHz range.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SMA Straight Bulkhead Adaptors are precision-engineered to meet the demanding requirements of professional RF applications. With a gold-plated body and a broad frequency range of DC to 18 GHz, these adaptors ensure low VSWR and consistent performance. Ideal for SMA Connector Series, these bulkhead adaptors feature a straight configuration and are packaged conveniently in sets of 100. Designed for durability and reliability, they guarantee seamless connectivity and high-quality signal transmission.

Product Specifications

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Configuration

straight bulkhead adaptor

Specifications Connection

female

Specifications Connector Series

SMA

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Mounting Hole

ML 35

Specifications Packaging

bulk 100 pcs.

Specifications Plating Body

gold

Specifications Vswr Dc18 Ghz F

1.05 +0.005

SMA Straight Bulkhead Adaptors - Female to Female
