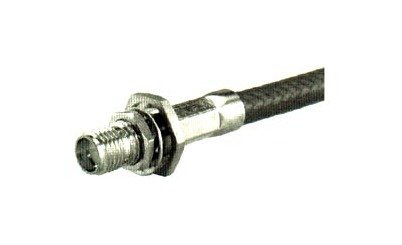

SMA Straight Bulkhead Cable Plugs (Female)
SMA Straight Bulkhead Cable Plugs (Female)
SKU:SMA-38bc44
High-performance SMA Straight Bulkhead Cable Plugs for up to 18 GHz applications. Sturdy construction, low RF leakages, and superior contact resistance for reliable connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMA Straight Bulkhead Cable Plugs (Female)
$29.99
Quantity: 1
Claim Your Seller Account
SMA Straight Bulkhead Cable Plugs (Female)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMA Straight Bulkhead Cable Plugs provide a reliable RF connection solution for applications requiring high-frequency transmission up to 18 GHz. With a sturdy construction featuring Beryllium copper and PTFE/PFA insulators, these plugs ensure superior performance, low contact resistance, and RF-leakage of over 60 dB. Suitable for flexible cable types and designed with precision, these cable plugs are ideal for demanding industrial and institutional settings.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U9
Specifications Cable Type
flexible
Specifications Configuration
straight bulkhead
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Mounting Hole
ML 20
Specifications Packaging
single
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
