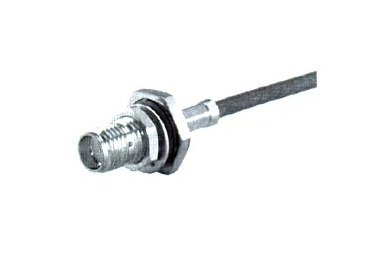

SMA Straight Bulkhead Cable Plugs (Female)

Name: SMA Straight Bulkhead Cable Plugs (Female)
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-43f58d
Price: 24.99 USD
Availability: OutOfStock

SKU:SMA-43f58d

Precision-engineered SMA female cable plugs for RF applications up to 18 GHz. Gold-plated bodies for durability and high conductivity.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SMA Straight Bulkhead Cable Plugs (Female) are precision-engineered connectors designed for seamless integration in RF applications up to 18 GHz. With a working voltage of 190 V rms and RF-Leakage of >60 dB, these connectors ensure reliable signal transmission. Crafted from hardened beryllium copper and featuring gold-plated bodies, these connectors offer superior durability and conductivity. Ideal for institutional and government procurement, these plugs meet stringent industry standards and ensure high performance in demanding environments.

Product Specifications

Specifications Body Material

Beryllium copper, hardened

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Cable Group

Specifications Cable Type

flexible

Specifications Configuration

straight bulkhead

Specifications Connection

female

Specifications Connector Series

<2.5

Specifications Contact Captivation Lbs

SMA

Specifications Contact Resistance Centre Contact Ohms

<65/<85

Specifications Contact Resistance Outer Contact Ohms

Specifications Corona Extinction Voltage V Rms

<250/<335

Specifications Crimp Ferrule Material

copper, brass

Specifications Dielectic Withstanding Voltage V Rms

750/1000

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Insulator Material

PTFE or PFA

Specifications Mounting Hole

ML 20

Specifications Packaging

bulk 100 pcs.

Specifications Pin Contact Material

Beryllium copper, hardened

Specifications Plating Body

gold

Specifications Rf Leakage Db

>60

Specifications Socket Contact Material

Beryllium copper, hardened

Specifications Temperature Range Degrees F

-85 to 329

Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol

190/250

SMA Straight Bulkhead Cable Plugs (Female)
