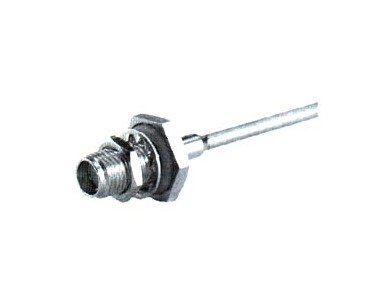

SMA Straight Bulkhead Cable Plugs (Female)
SMA Straight Bulkhead Cable Plugs (Female)
SKU:SMA-abdd63
Premium SMA cable plugs for RF applications up to 18 GHz, featuring beryllium copper construction, gold-plated body, and PTFE/PFA insulator for reliable connectivity.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
SMA Straight Bulkhead Cable Plugs (Female)
$149.99
Quantity: 1
Claim Your Seller Account
SMA Straight Bulkhead Cable Plugs (Female)
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMA Straight Bulkhead Cable Plugs (Female) are designed for superior performance in RF applications up to 18 GHz. With a durable construction of beryllium copper, these plugs ensure reliable connectivity and minimal RF leakage (>100 dB). The PTFE or PFA insulator material coupled with gold-plated body enhances signal integrity and corrosion resistance. Suitable for Y5 and Y12 cable groups, this product is ideal for demanding environments requiring precision and stability.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y5, Y12
Specifications Cable Type
semi-rigid
Specifications Configuration
straight bulkhead
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Mounting Hole
ML 35
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
