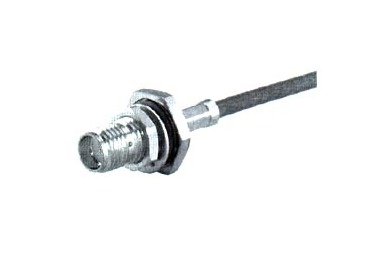

SMA Straight Bulkhead Cable Plugs (Female)
SMA Straight Bulkhead Cable Plugs (Female)
SKU:SMA-2e02e7
Enhance RF connectivity with precision SMA Straight Bulkhead Cable Plugs (Female) suitable for 18 GHz frequencies.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
SMA Straight Bulkhead Cable Plugs (Female)
$69.99
Quantity: 1
Claim Your Seller Account
SMA Straight Bulkhead Cable Plugs (Female)
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your RF connectivity with our SMA Straight Bulkhead Cable Plugs (Female). Designed with precision, these plugs feature an impedance of 50 ohms, with a frequency range spanning from DC to 18 GHz. Crafted from high-quality beryllium copper and PTFE/PFA insulator material, they ensure reliable performance in extreme temperatures. With compliance to strict industry standards, these cable plugs offer superior contact resistance, RF-Leakage reduction, and exceptional dielectric properties for seamless installations.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U2
Specifications Cable Type
flexible
Specifications Configuration
straight bulkhead
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Mounting Hole
ML 20
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
