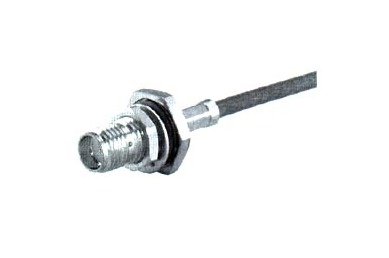

SMA Straight Bulkhead Cable Plugs, Female (RG316)
SMA Straight Bulkhead Cable Plugs, Female (RG316)
SKU:SMA-c68ba2
High-performance SMA Straight Bulkhead Cable Plugs for up to 18 GHz, featuring low RF-Leakage and hardened Beryllium copper construction.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
SMA Straight Bulkhead Cable Plugs, Female (RG316)
$45.99
Quantity: 1
Claim Your Seller Account
SMA Straight Bulkhead Cable Plugs, Female (RG316)
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMA Straight Bulkhead Cable Plugs provide reliable 50-ohm impedance connectivity for frequencies up to 18 GHz. With a low RF-Leakage of over 60 dB and gold plating on the body for enhanced durability, these plugs are suitable for high-demand applications. Built with hardened Beryllium copper materials, including the pin and socket contacts, and PTFE or PFA insulators, these connectors ensure consistent performance in temperature ranges from -85 to 329 degrees Fahrenheit. The connectors are mounted in a straight bulkhead configuration for seamless integration into systems requiring precise and durable cable connections.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U2
Specifications Cable Type
flexible
Specifications Configuration
straight bulkhead
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA

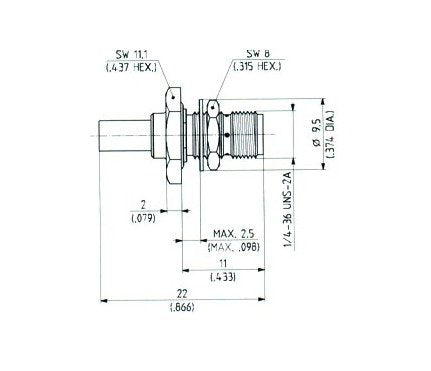

Specifications Mounting Hole
ML 20
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
