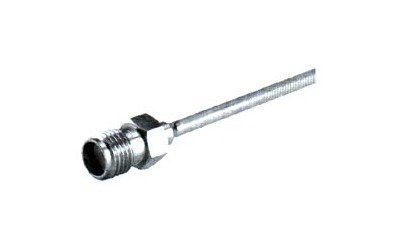

SMA Straight Cable Connectors (female)

Name: SMA Straight Cable Connectors (female)
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-ae9aed
Price: 24.99 USD
Availability: OutOfStock

SKU:SMA-ae9aed

High-quality SMA straight cable connectors for reliable RF performance up to 18 GHz. Durable materials & gold plating ensure stability & precision.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your RF connections with our SMA Straight Cable Connectors. With impedance of 50 ohms, a wide frequency range up to 18 GHz, and gold-plated bodies, these connectors ensure reliable performance. Made with beryllium copper and PTFE/PFA insulators, they offer superior durability and stability in temperatures ranging from -85 to 329 degrees F. Perfect for SMA cable assemblies requiring precise connections.

Product Specifications

Specifications Body Material

Beryllium copper, hardened

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Cable Group

Specifications Cable Type

semi-rigid

Specifications Configuration

straight

Specifications Connection

female

Specifications Connector Series

<2.5

Specifications Contact Captivation Lbs

SMA

Specifications Contact Resistance Centre Contact Ohms

<85/<125

Specifications Contact Resistance Outer Contact Ohms

Specifications Corona Extinction Voltage V Rms

<335/<500

Specifications Crimp Ferrule Material

copper, brass

Specifications Dielectic Withstanding Voltage V Rms

1000/1500

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Insulator Material

PTFE or PFA

Specifications Packaging

single

Specifications Pin Contact Material

Beryllium copper, hardened

Specifications Plating Body

gold

Specifications Rf Leakage Db

>100

Specifications Socket Contact Material

Beryllium copper, hardened

Specifications Temperature Range Degrees F

-85 to 329

Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol

250/375
