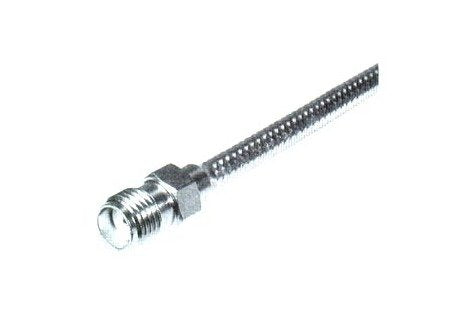

SMA Straight Cable Plugs (Female)
SMA Straight Cable Plugs (Female)
SKU:SMA-1bb581
High-performance SMA female cable plugs for frequencies up to 18 GHz, featuring durable beryllium copper construction and excellent RF-leakage suppression.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
SMA Straight Cable Plugs (Female)
$69.99
Quantity: 1
Claim Your Seller Account
SMA Straight Cable Plugs (Female)
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMA Straight Cable Plugs (Female) are precision-engineered connectors designed for high-frequency applications up to 18 GHz. With a durable body material of hardened beryllium copper and PTFE/PFA insulator, these connectors ensure reliable signal transmission while maintaining a temperature range of -85 to 329 degrees F. Meeting impedance standards of 50 ohms and featuring RF-leakage of over 100 dB, these plugs offer exceptional performance and stability in demanding environments.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y5
Specifications Cable Type
semi-rigid
Specifications Configuration
straight
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
SUCOPRO
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
