SMA Straight Cable Plugs (Female)
SMA Straight Cable Plugs (Female)
SKU:SMA-fb57f3
Premium SMA Straight Cable Plugs (Female) for high-frequency applications. Impedance: 50 ohms. Frequency Range: DC - 18 GHz. Reliable, durable, and high-performance.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
SMA Straight Cable Plugs (Female)
$25.99
Quantity: 1
Claim Your Seller Account
SMA Straight Cable Plugs (Female)
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

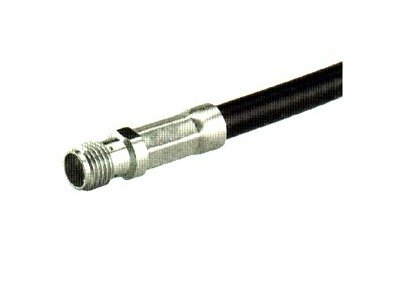

The SMA Straight Cable Plugs (Female) are precision-engineered connectors designed for seamless integration into RG 58 and 400 cables. With an impedance of 50 ohms and a frequency range from DC to 18 GHz, these plugs ensure reliable signal transmission with minimal RF leakage. Crafted from high-quality materials including beryllium copper and PTFE insulators, they offer exceptional durability and performance in temperature ranges from -85 to 329 degrees F. These straight cable plugs feature gold plating, ensuring optimal conductivity and corrosion resistance, making them ideal for demanding applications in aerospace, defense, and telecommunications.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U9, U11
Specifications Cable Type
flexible
Specifications Configuration
straight
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
single
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
