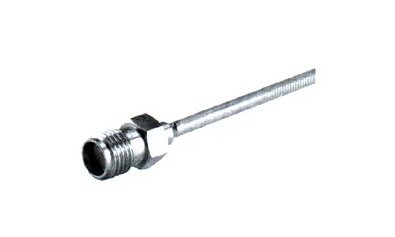

SMA Straight Cable Plugs (Female) - EZ Series

Name: SMA Straight Cable Plugs (Female) - EZ Series
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-f8c358
Price: 24.99 USD
Availability: OutOfStock

SKU:SMA-f8c358

Experience high-performance connectivity with SMA Straight Cable Plugs (Female) - EZ Series. Ideal for applications up to 18GHz with exceptional durability and precision.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your connectivity with our SMA Straight Cable Plugs (Female) from the EZ Series. Designed for precision and durability, these plugs offer a frequency range up to 18GHz, RF-Leakage of >100 dB, and a wide temperature range from -85 to 329 degrees F. With corrosion-resistant materials and compliant with stringent standards, these plugs ensure reliable performance in diverse applications.

Product Specifications

Specifications Body Material

Beryllium copper, hardened

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Cable Group

Specifications Cable Type

semi-rigid

Specifications Configuration

straight

Specifications Connection

female

Specifications Connector Series

<2.5

Specifications Contact Captivation Lbs

SMA

Specifications Contact Resistance Centre Contact Ohms

<85/<125

Specifications Contact Resistance Outer Contact Ohms

Specifications Corona Extinction Voltage V Rms

<335/<500

Specifications Crimp Ferrule Material

copper, brass

Specifications Dielectic Withstanding Voltage V Rms

1000/1500

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Insulator Material

PTFE or PFA

Specifications Packaging

single

Specifications Pin Contact Material

Beryllium copper, hardened

Specifications Plating Body

gold

Specifications Rf Leakage Db

>100

Specifications Socket Contact Material

Beryllium copper, hardened

Specifications Temperature Range Degrees F

-85 to 329

Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol

250/375

SMA Straight Cable Plugs (Female) - EZ Series
