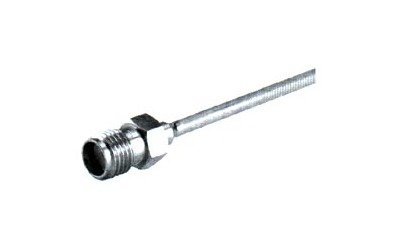

SMA Straight Cable Plugs (Female) - RF Connectors
SMA Straight Cable Plugs (Female) - RF Connectors
SKU:SMA-914ee0
Enhance RF connections with our SMA Straight Cable Plugs. High-quality beryllium copper construction for reliable performance up to 18GHz.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SMA Straight Cable Plugs (Female) - RF Connectors
$39.99
Quantity: 1
Claim Your Seller Account
SMA Straight Cable Plugs (Female) - RF Connectors
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your RF connectivity with our SMA straight cable plugs featuring beryllium copper construction, gold plating, and a wide temperature range. Designed for high-performance applications up to 18GHz, these connectors offer exceptional RF-leakage protection and high dielectric withstanding voltage. With compliance to stringent industry standards, including a corrosion-resistant body and precise contact resistance, these plugs ensure reliable signal transmission in demanding environments.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y3, Y11
Specifications Cable Type
semi-rigid
Specifications Configuration
straight
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
